FE1.1s — USB 2.0 4-Port STT Hub Controller

FE1.1s is a highly integrated, high-quality, and high-performance solution for USB 2.0 High Speed 4-Port Hub. With tiny footprint and extremely low power consumption, it is the best choice for embedded system and standalone hub.

Battery Charging Configuration

FE1.1s could be optionally configured to support Charging Downstream Ports as defined by USB-IF Battery Charging Specification Revision 1.1/1.2. When enabling this feature, a USB hub could be transformed into a charging station for Universal Charging Solution-compliant battery-based portable devices.

Customizable EEPROM

FE1.1s allows EEPROM configuration for customizing Vendor ID, Product ID, Device Release Number, and the number of downstream ports.

Quality Guaranteed

Quality is guaranteed by Design-For-Testing with comprehensive scan chains and Built-In-Self-Test modes which could exercise all high-, full-, and low-speed Analog Front End (AFE) components at the packaging and testing stages.

Product Brief for FE1.1sPDF icon

Contact Sales 📩

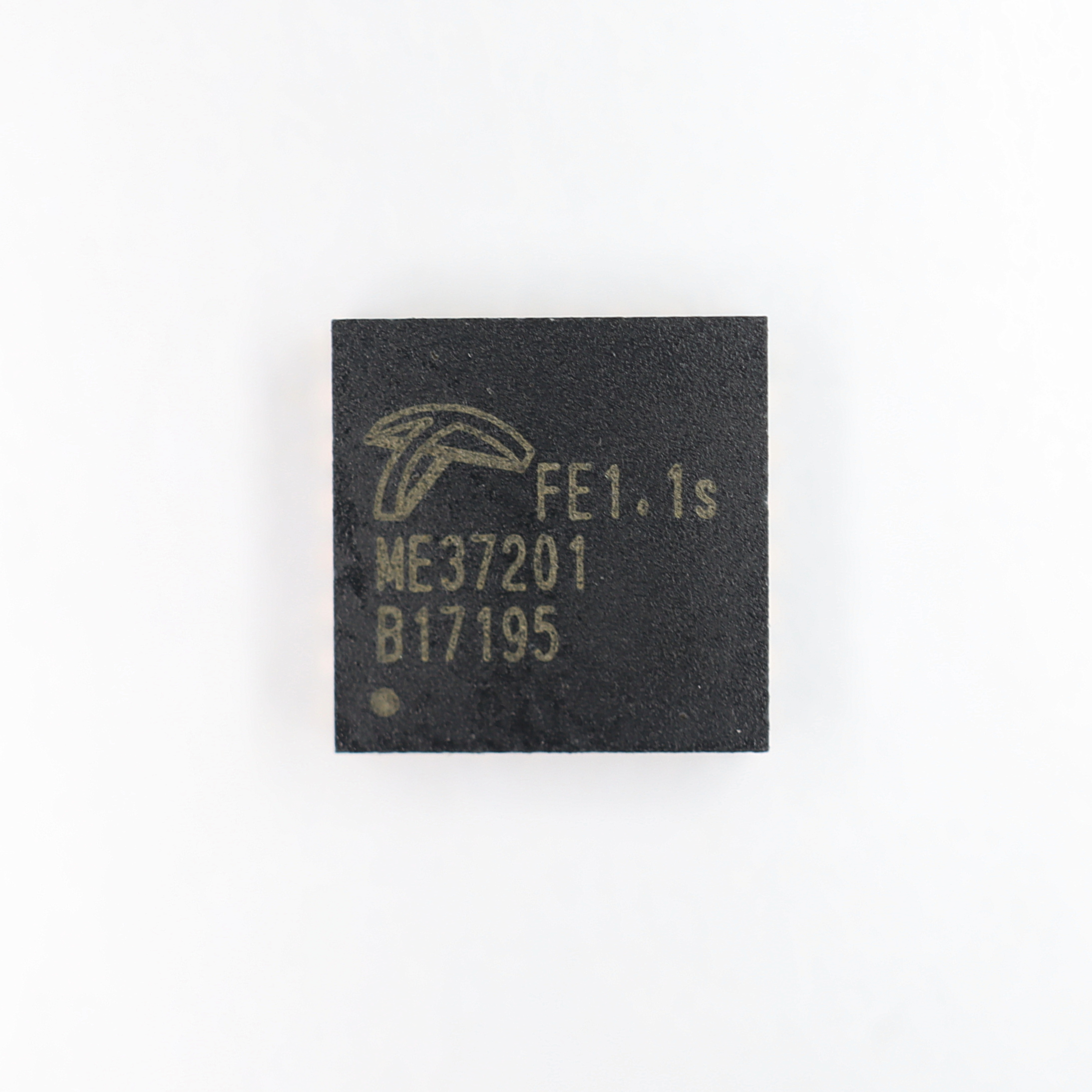

FE1.1s in WQFN24 package Full size image.FE1.1s in WQFN24 package

Product Specifications

Package Port Count Body Size Grade Transaction Translator
WQFN-24 4 4x4 mm Commercial Grade,
Extended Temperature Grade[*],
Automotive Grade[**]		 Single
SSOP-28 4 4x10 mm Commercial Grade Single

Commercial Grade: 0°C - 70°C
Extended Temperature Range: Certified for -40°C, 25°C, 85°C
Automotive Temperature Range: -40℃ - 85℃, Automotive Electronics Council (AEC-Q100) Qualified

Features

  • Fully compliant with Universal Serial Bus Specification Revision 2.0 (USB 2.0)
  • Upstream Facing Port supports High-Speed (480MHz) and Full-Speed (12MHz) modes
  • 4 Downstream Facing Ports support High-Speed, Full-Speed, and Low-Speed (12MHz) modes
  • Compliant with Universal Charging Solution, and USB Battery Charging Specification 1.1/1.2.
  • Integrated USB 2.0 Transceivers
  • Integrated upstream 1.5KΩ pull-up, downstream 15KΩ pull-down, and serial resistors
  • Integrated 5V to 3.3V and 1.8V regulators
  • Integrated Power-On-Reset with power failure detection circuit
  • Integrated 12MHz Oscillator with feedback resistor and crystal load capacitors
  • Integrated 12MHz-to-480MHz Phase Lock Loop (PLL)
  • Integrated Portable Device detection circuitry for UCS supporting;
  • Board configure support of portable device detection mechanism for Universal Charging Solution on all 4 downstream ports
  • Single Transaction Translator
    • One TT for all downstream ports
    • The TT can handle 64 periodic Start-Split transactions, 32 periodic Complete-Split transactions, and 6 non-periodic transactions
  • Automatic self-power status monitoring
    • Automatic re-enumeration when Self-Powered switching to Bus-Powered
  • Ganged Power Control and Global Over-Current Detection support
  • EEPROM configuration options:
    • Vendor ID, Product ID, Device Release Number
    • Number of Downstream Ports
  • Board configured comprehensive Port Indicators support:
    • Four Downstream Port Enabled indicator LED (Green, one for each port), plus one Active/Suspend indicator LED (Red); or
    • One joint Downstream Port Enabled indicator LED (Green, one for all ports), plus one Active/Suspend indicator LED (Red); or
    • One joint Downstream Port Enabled indicator LED (Green, one for all ports), plus one Charging Request/Portable Device Detection indicator LED (Blue)
