USB 2.0 Hub Controllers
Introduction
Terminus Technology develops industrial standard, high-speed serial-bus-based IC and IP products. We focus on USB Hub Controllers, including Standard and Application-Specific USB Hubs.
Contact Sales 📩
Featured: FE18.1

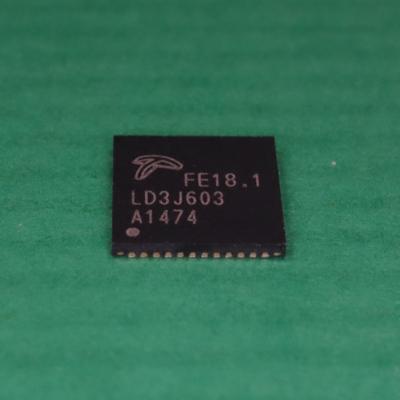

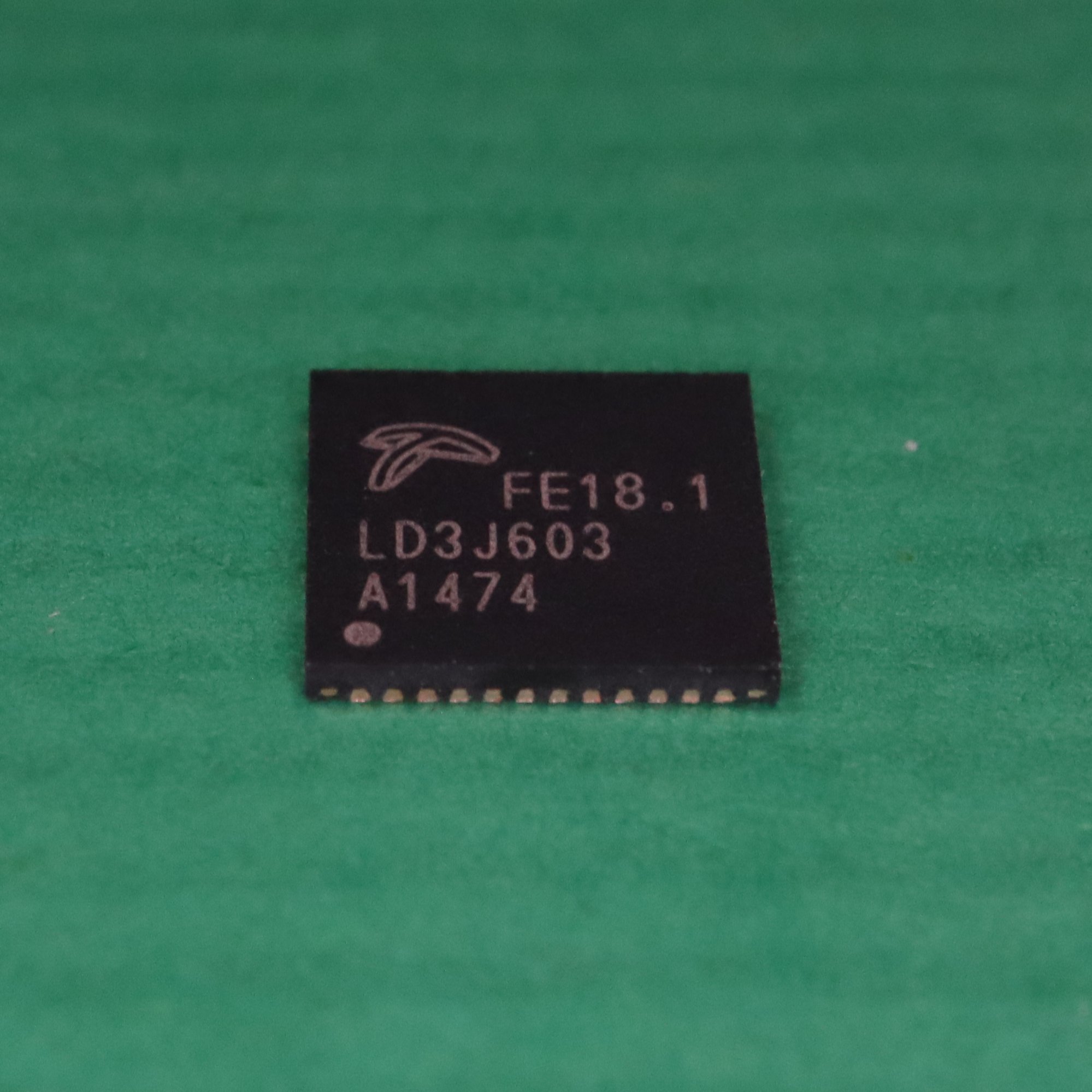

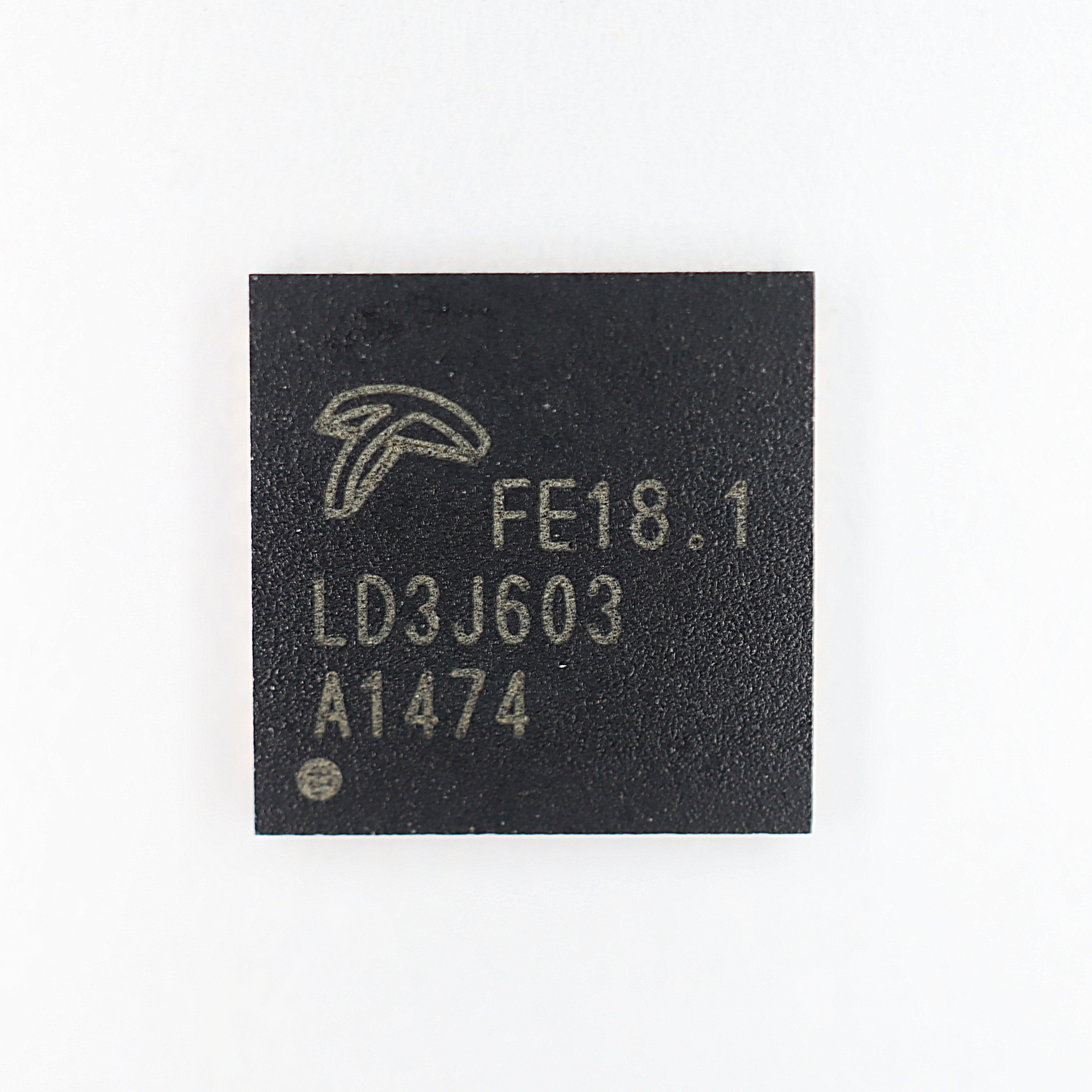

FE18.1 in QFN-48 packageFE18.1 is a USB 2.0 High-Speed 4x4 hub controller designed for systems where multiple USB hosts need to share the same set of USB devices. It provides four upstream-facing ports and four downstream-facing ports, with selectable upstream operation for flexible host switching. It is suitable for KVM switches, multi-host USB systems, server-room switching equipment, and USB charging hubs.
Series One: Standard USB 2.0 Hub Controllers
| Part Number | Description | Port Count | Transaction Translator |
Package |
|---|---|---|---|---|

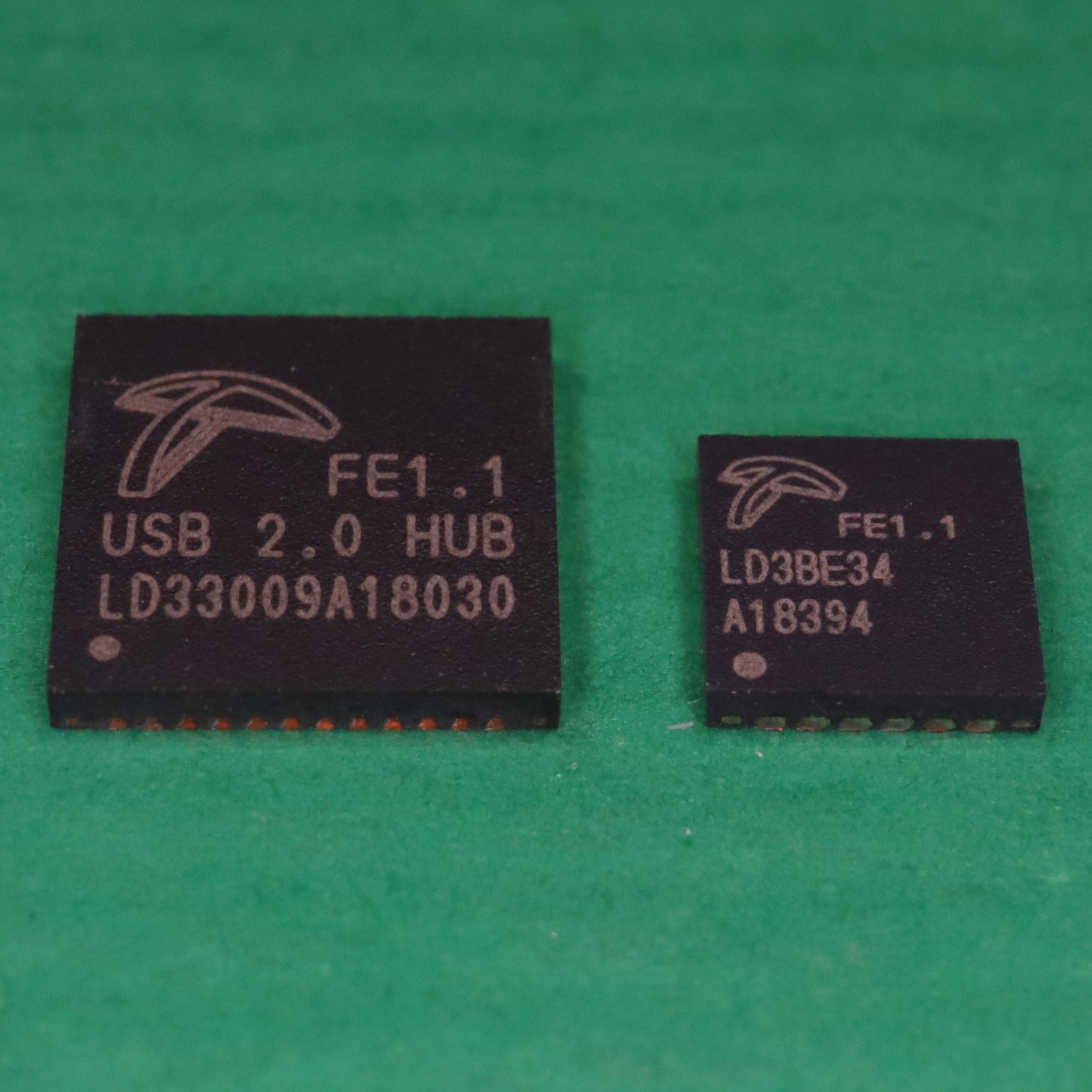

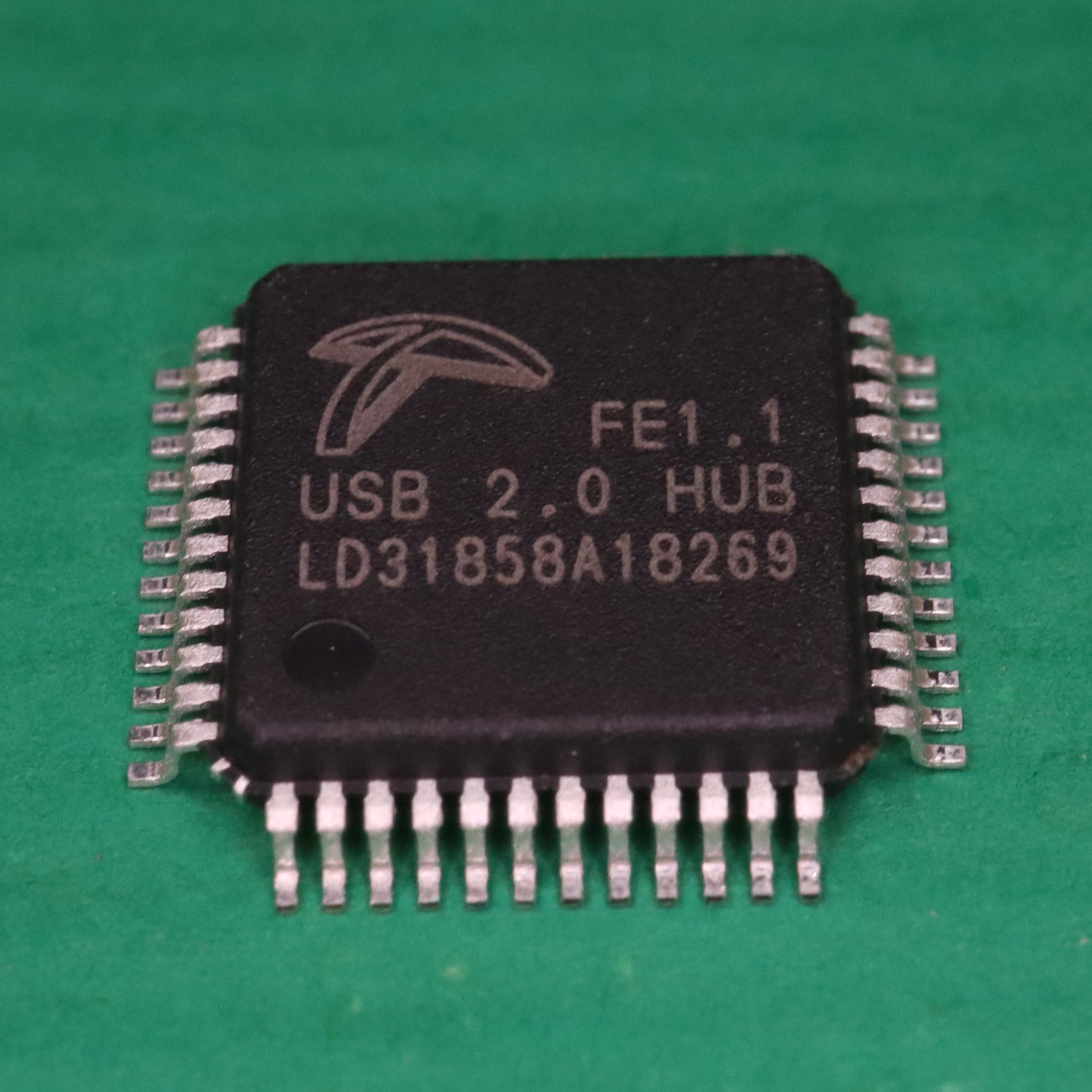

| FE1.1 | USB 2.0 4-Port High Speed Hub | 4 | MTT | LQFP-48 QFN-24 QFN-48 |

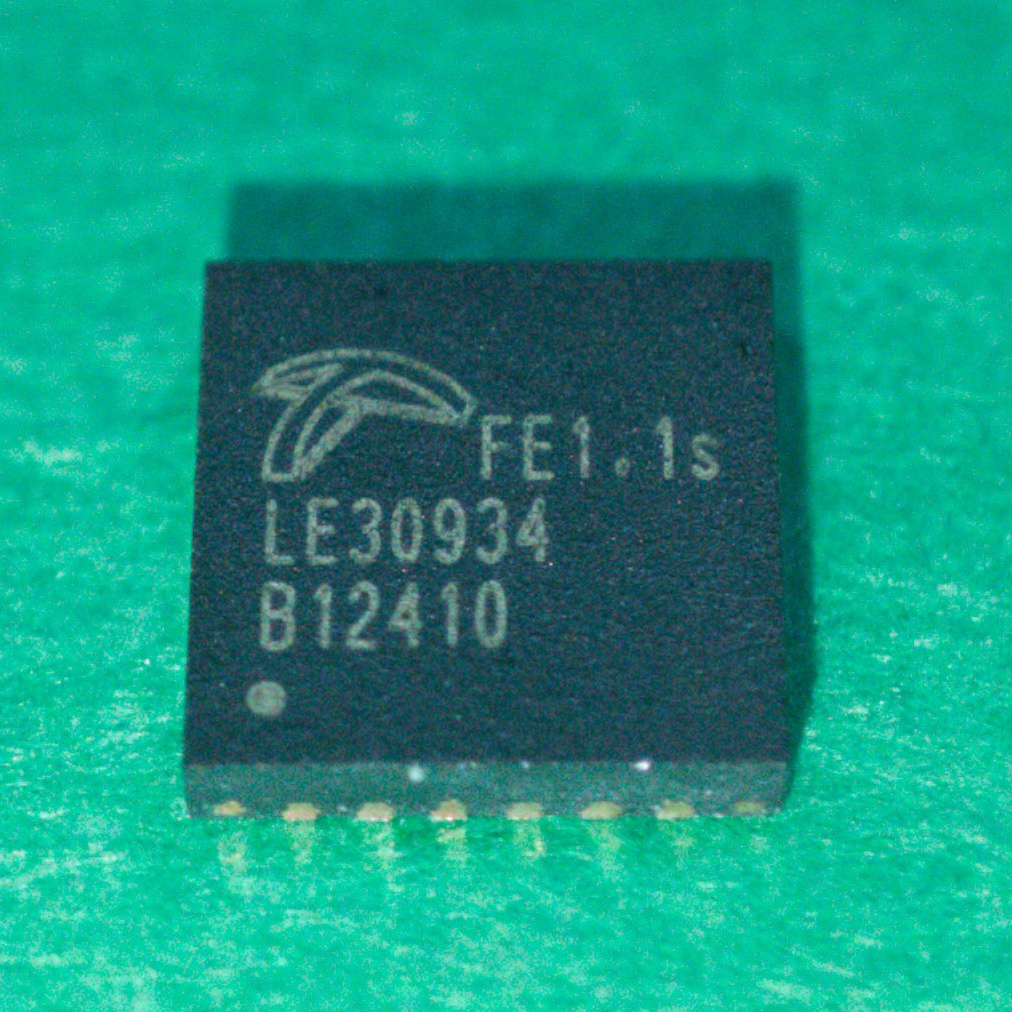

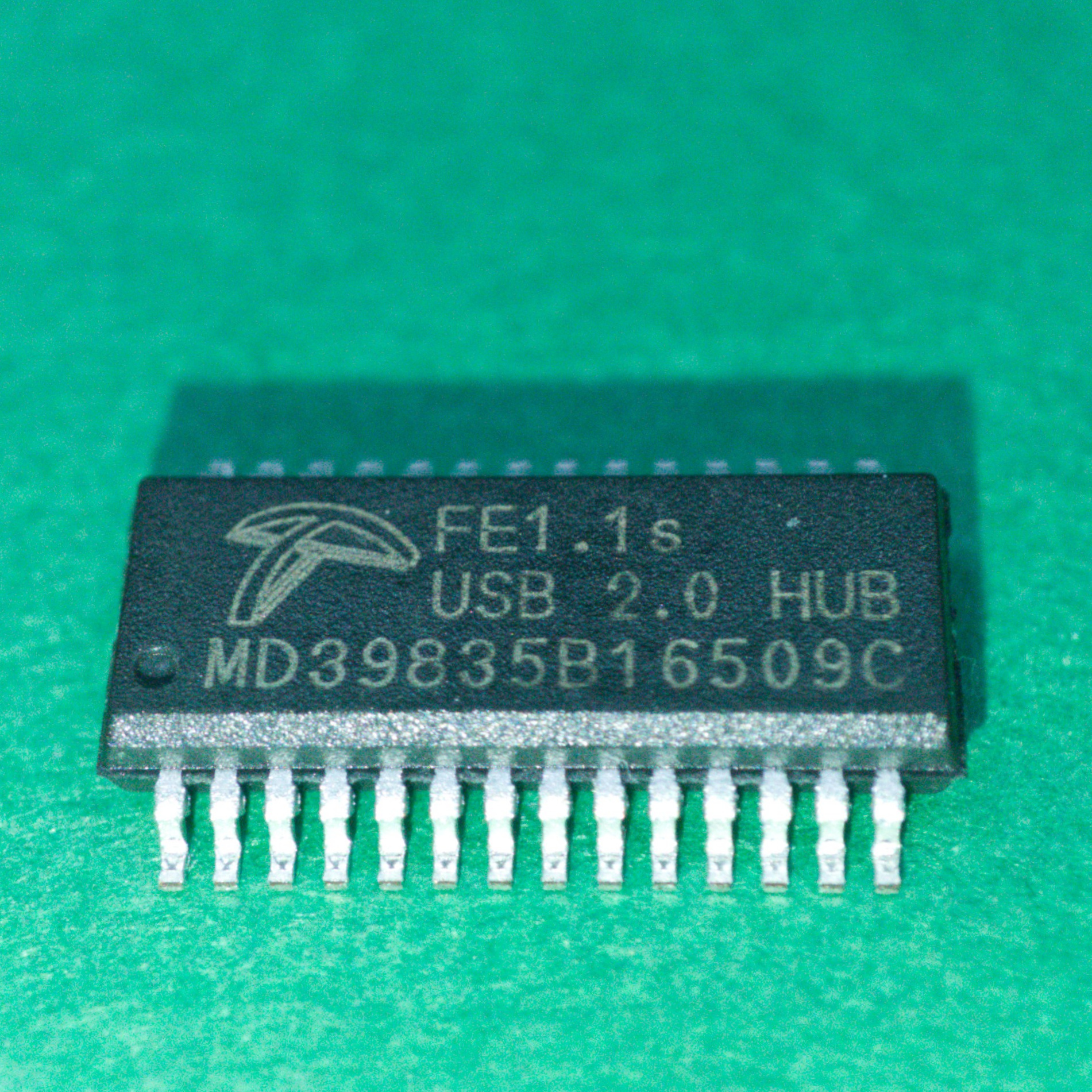

| FE1.1s | USB 2.0 4-Port High Speed Hub | 4 | STT | SSOP-28 WQFN-24 |

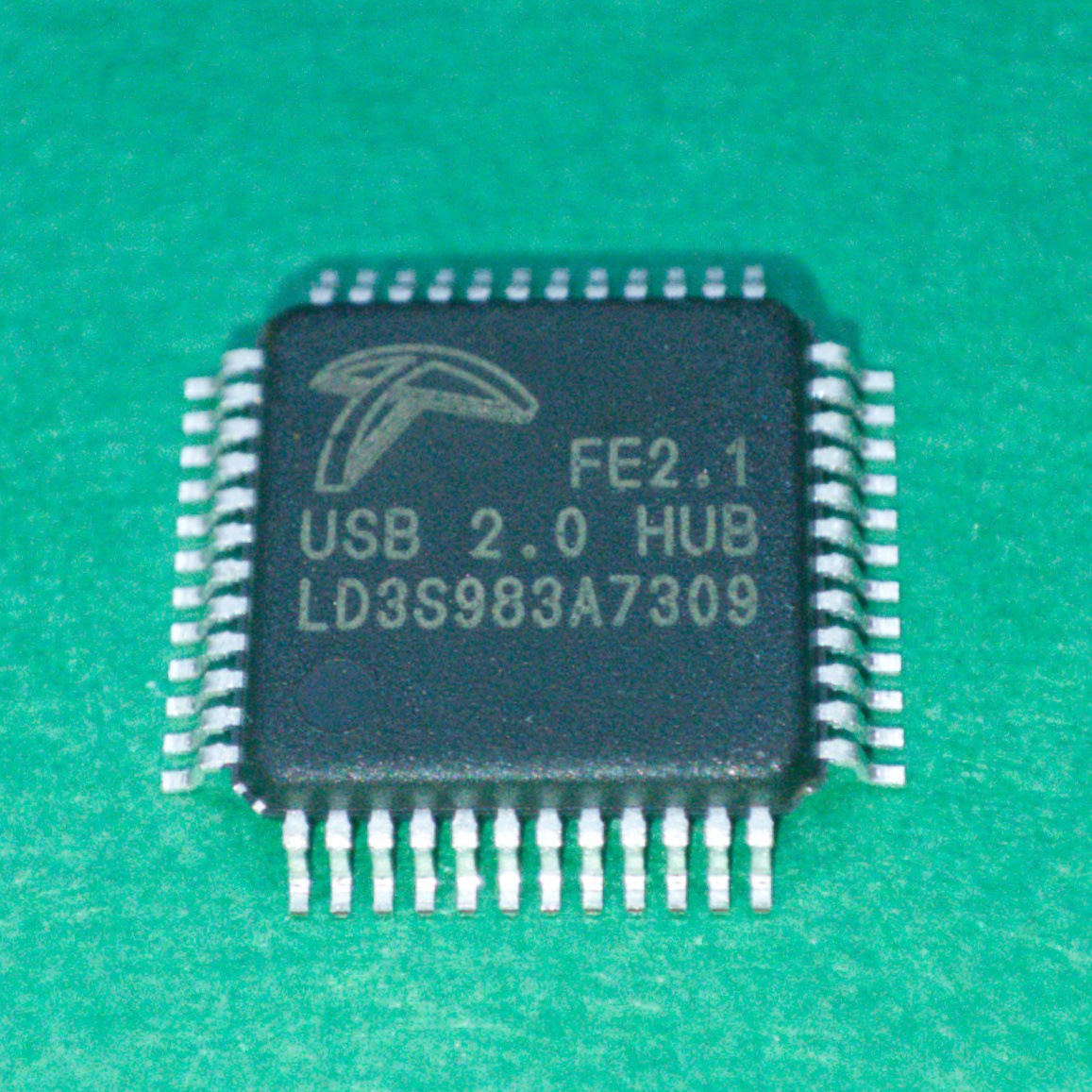

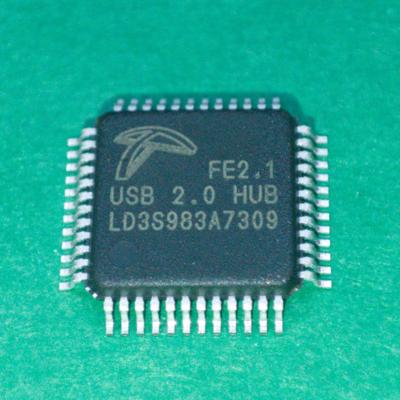

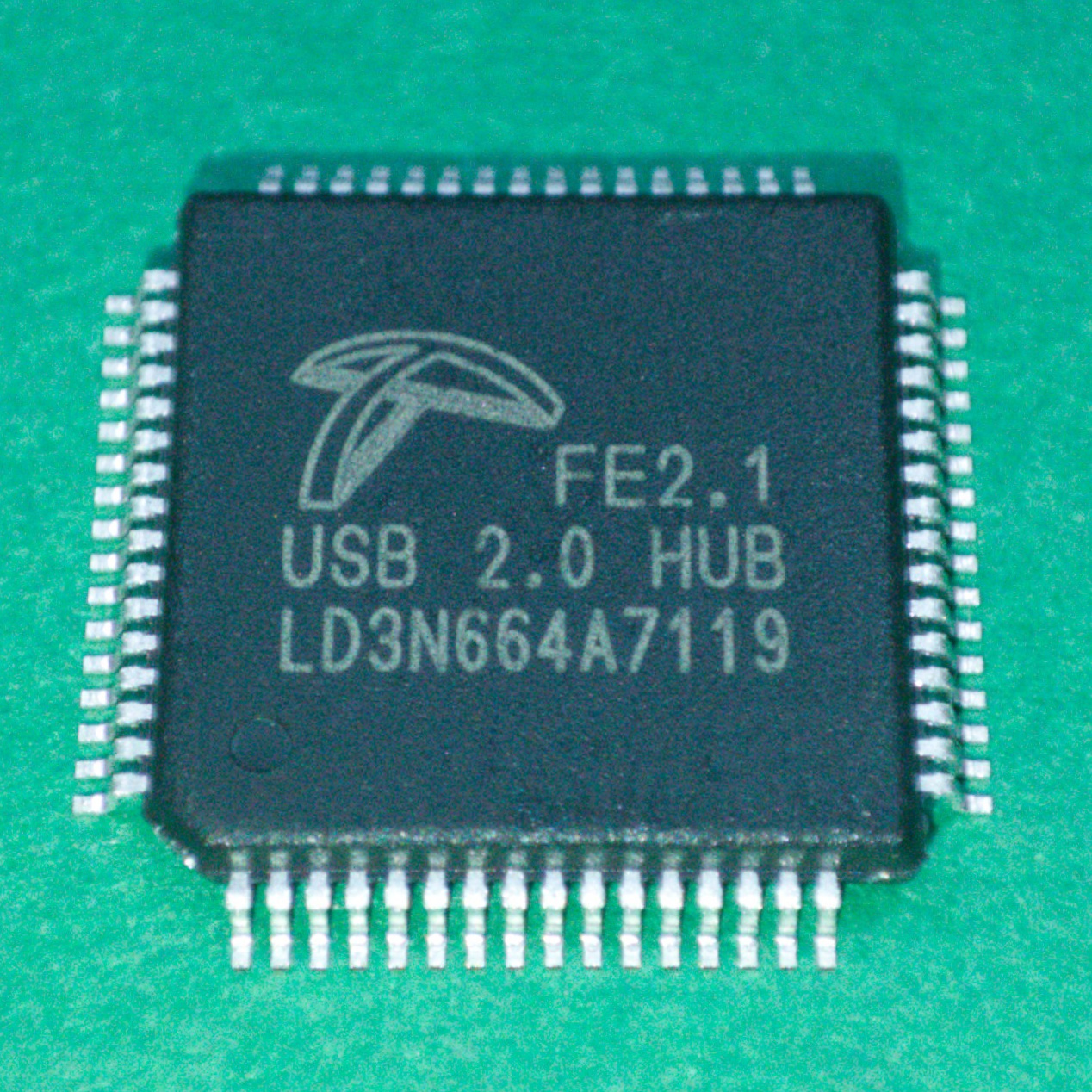

| FE2.1 | USB 2.0 7-Port High Speed Hub | 7 | MTT | LQFP-48 LQFP-64 |

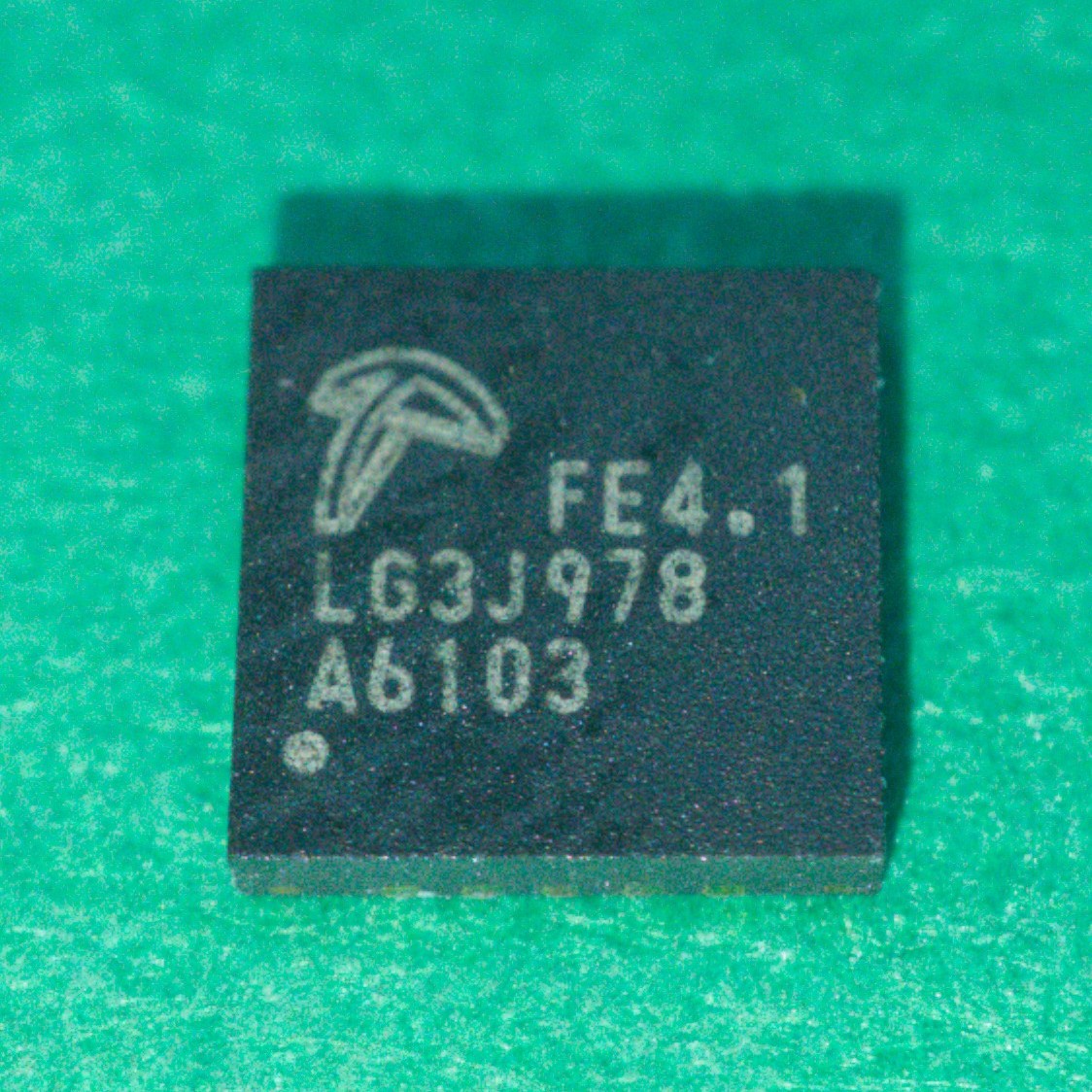

| FE4.1 | USB 2.0 2-Port High Speed Hub | 2 | STT | QFN-20 |

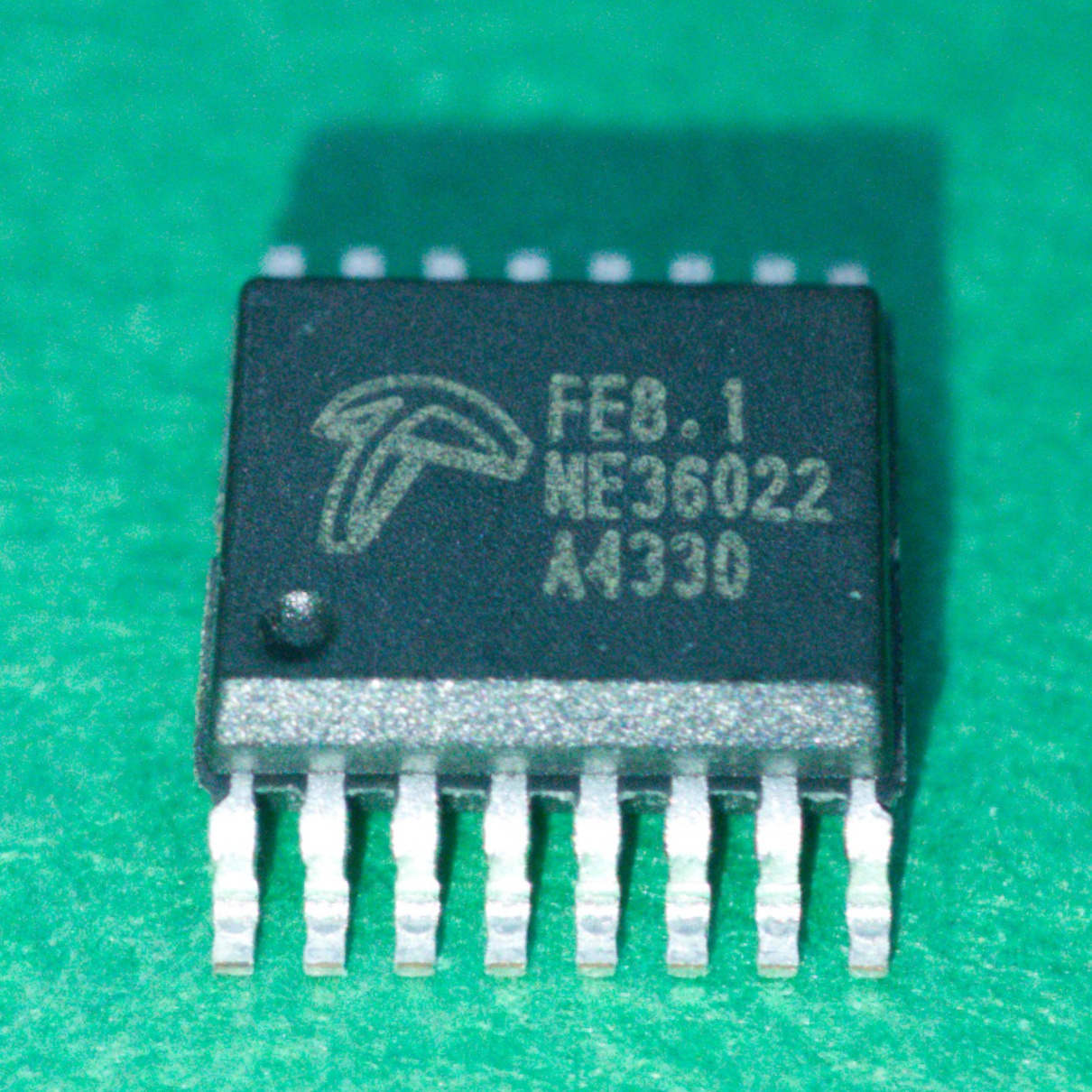

| FE8.1 | USB 2.0 4-Port High Speed Hub | 4 | STT | SSOP-16 |
Series Two: Application-Specific USB 2.0 Hub Controllers
| Part Number | Description | Port Count | Transaction Translator |
Package |
|---|---|---|---|---|

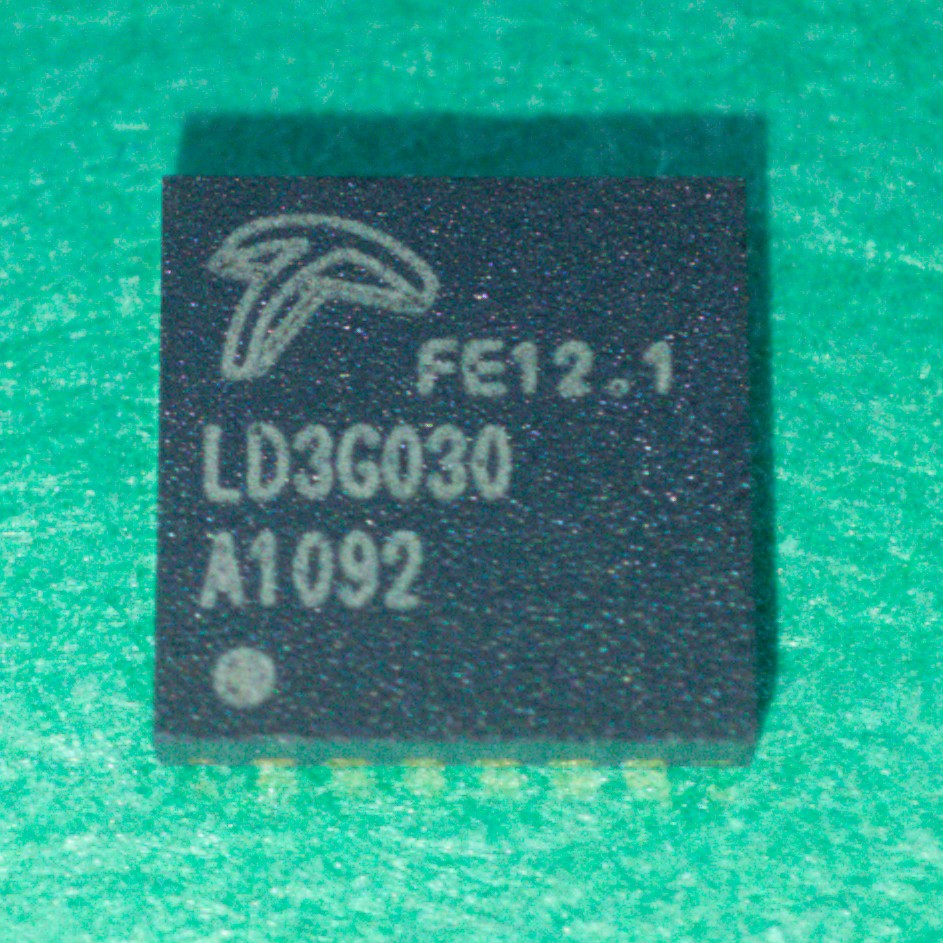

| FE12.1 | High-Speed Inter-Chip | 7 | MTT | WQFN-24 |

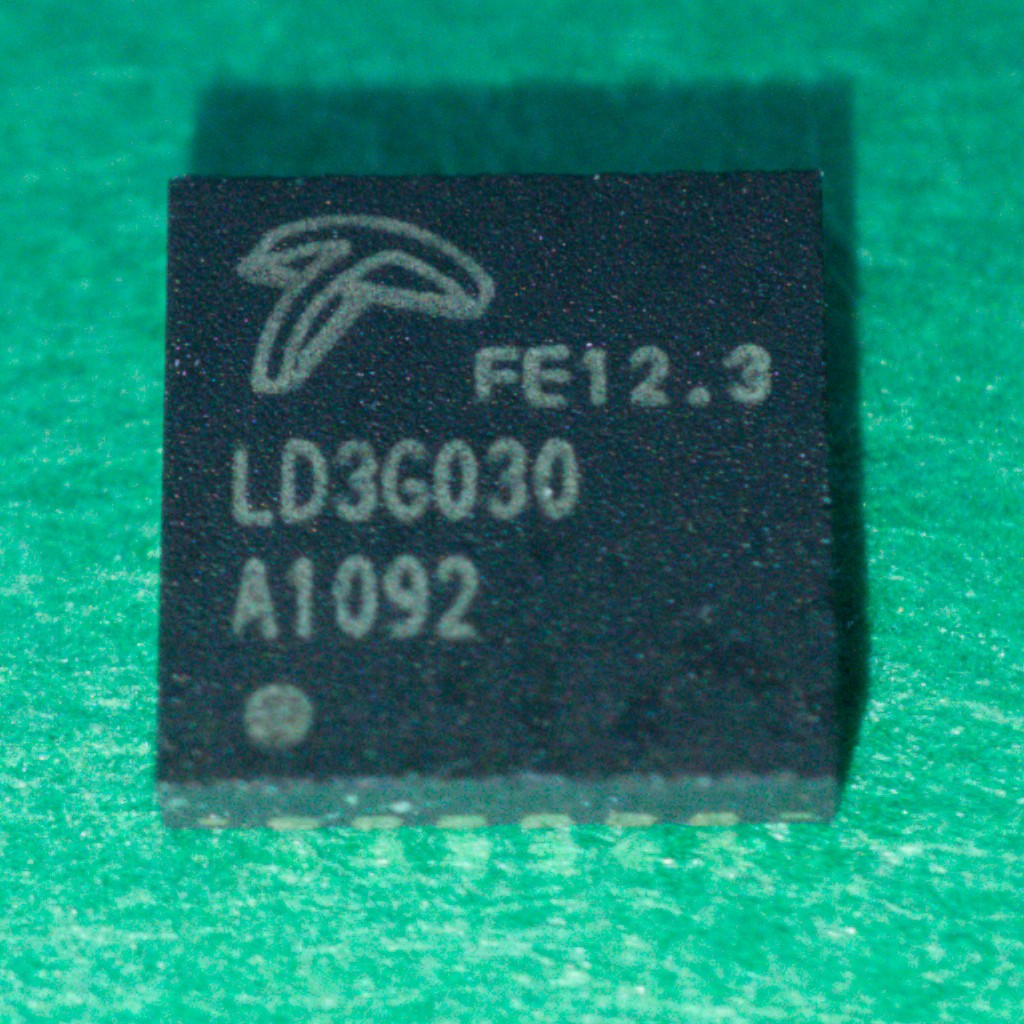

| FE12.3 | Reverse Switch, OTG | 4 | MTT | WQFN-24 |

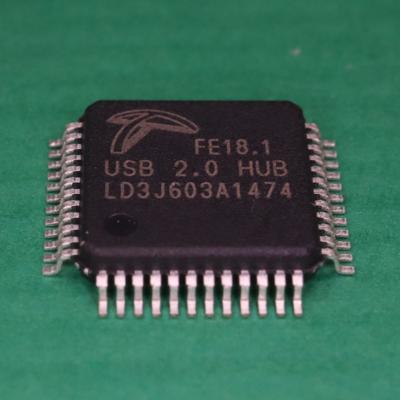

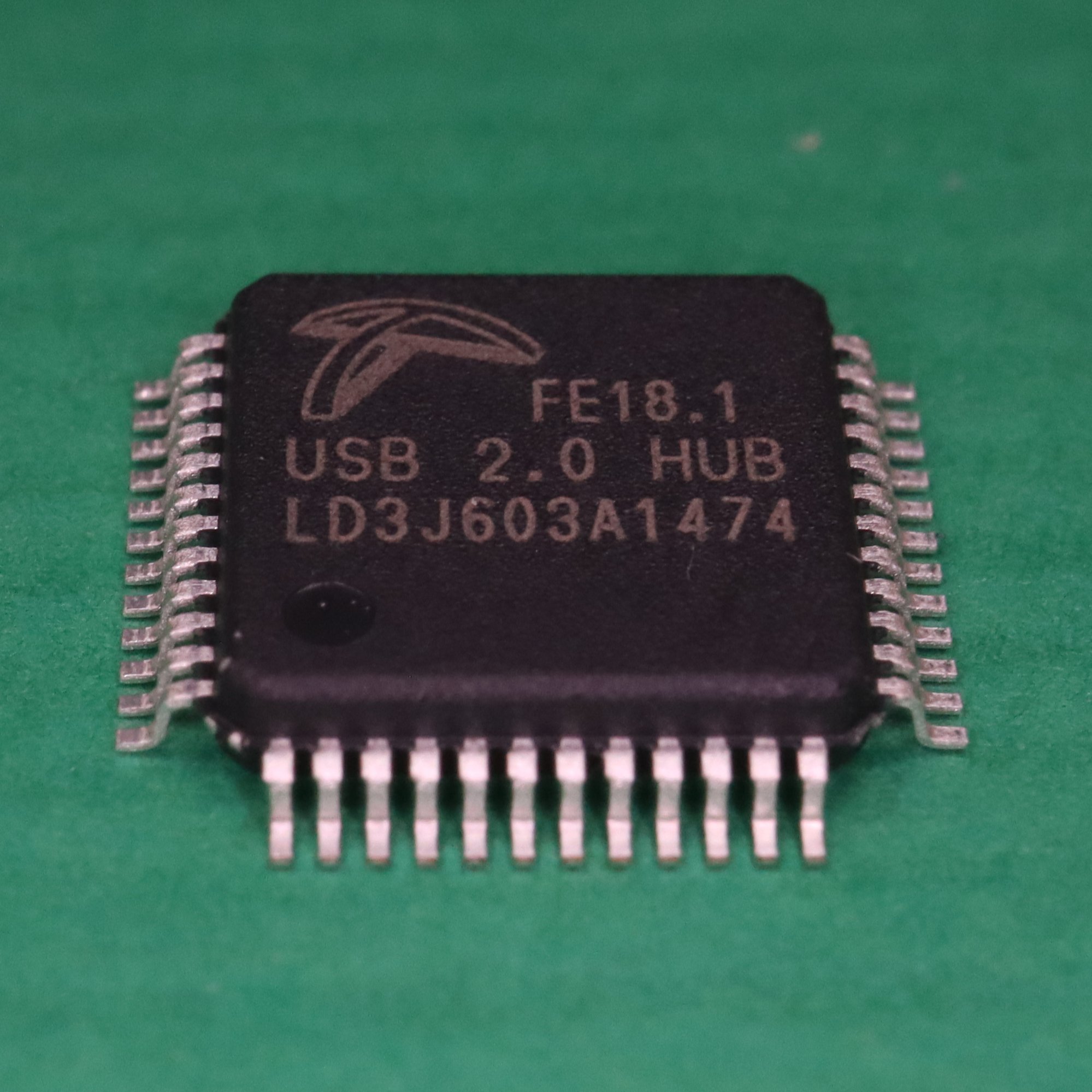

| FE18.1 | 4x4 Ports, Multiple USB Hosts, KVM | 4 | MTT | QFN-48 |
